88880

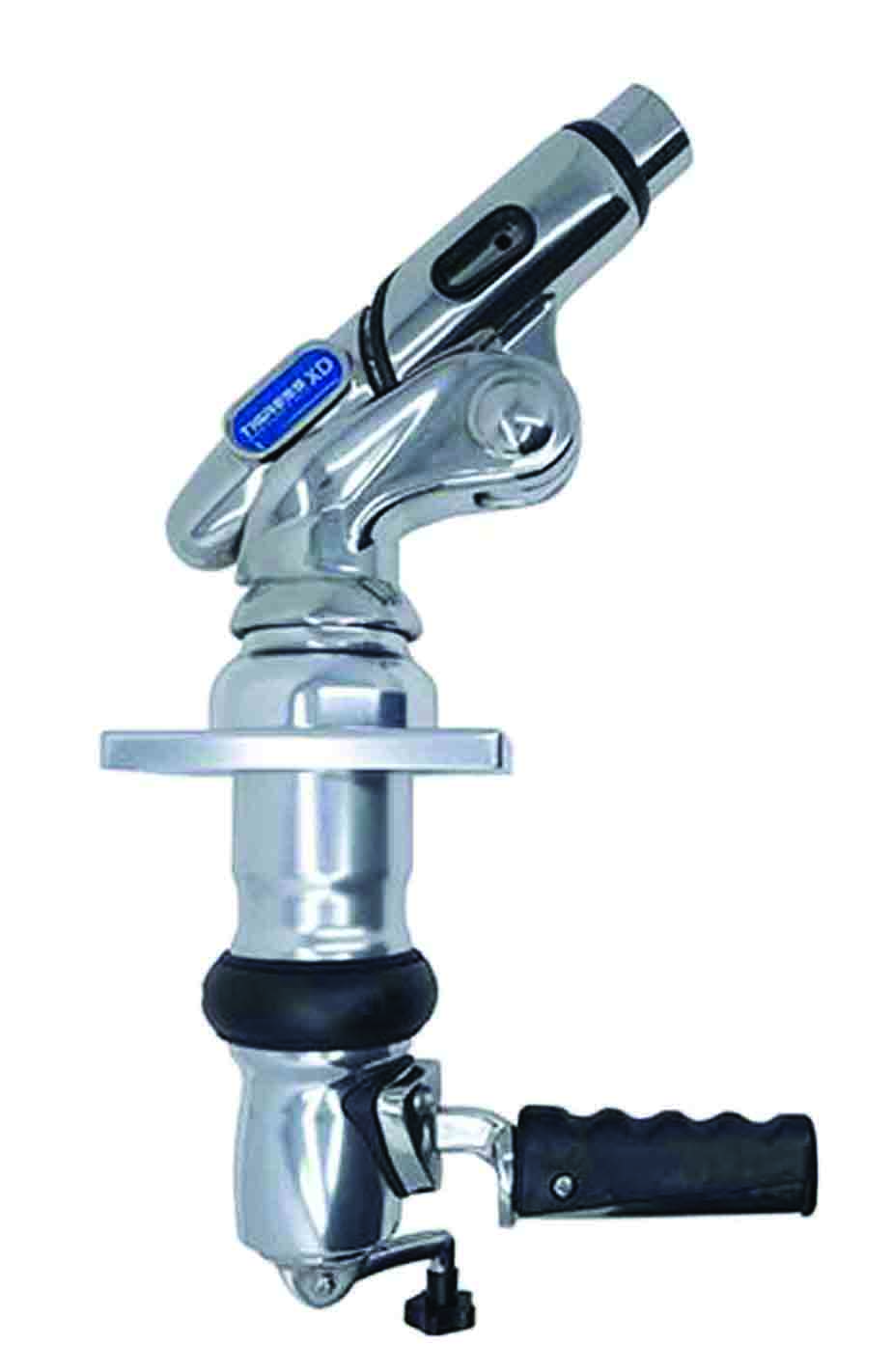

XD CRANK TOP MOUNT

Availability: 5 Special Order

Request quote

Adjustable upper arm with 'Run' and 'Laydown' position stops
User friendly folding crank handle with integrated drive brake
Upper-arm adjusting ball-bearing drive system, with integrated balance spring assist
Extreme duty top plate, upper arm and housings for outriggers up to 22 ft in length
Stainless steel and bronze brushed head pivot for maximum trolling strength and durability
Unique invertible tigress handle design for use on both soft and hard tops over 2 in thick
Accepts all tigress XD 1-1/2 in butt diameter outriggers and XD 1-1/8 in butts using adapter
Fits tigress and other industry standard 4 x 6 in mounting plates (four 5/16 in diameter fasteners)
Extreme-duty 316L stainless steel and anodized aluminum and sealed construction with UV protection
24 adjustable/locking system positions featuring Tigress XD 316L stainless steel design
Ergonomic 316 stainless steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
User friendly underside lever actuation, with 8 optional index able set-up positions
Fits through all standard 3 in diameter mounting plates and hard top holes
3-year limited warranty
